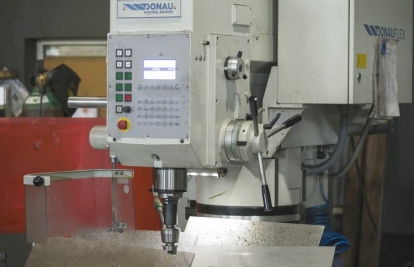

RAPID RADIAL DRILLING MACHINE DONAUFLEX

DONAUFLEX are the proven series of rapid radial drilling machines for manual operation with multiple options up to digital position readouts in X, Y and Z-axis.

MACHINE DATA:

• Drilling capacity - steel (St 60) 45 mm
• Drilling capacity – cast iron (GG 20) 55 mm
• Tapping capacity – steel (St 60) M 36
• Tapping capacity – cast iron (GG 20) max. M 45
• Radial arm travel 1050 mm
• Column height adjustment (W-axis) 450 mm
• Spindle travel (Z-axis) 195 mm
• Distance spindle nose - min. 66 mm - max. 710 mm
• Distance spindle nose to Floor plate surface - min. 866 mm - max. 1510 mm
• Drilling radius - min. 540 mm - max. 1590 mm
• Angular movement 330° Degrees
• Working table - Clamping surface 1200x750 mm; T-slots accord
• Driving capacity - max. 5,5 kW
• Spindle speed range - 15 - 2800 rpm
